3D Coordinate Measuring
Measuring Range:
X = 700 mm Y = 1000 mm Z = 600 mm
Precision: 1.5 + L/350 μm

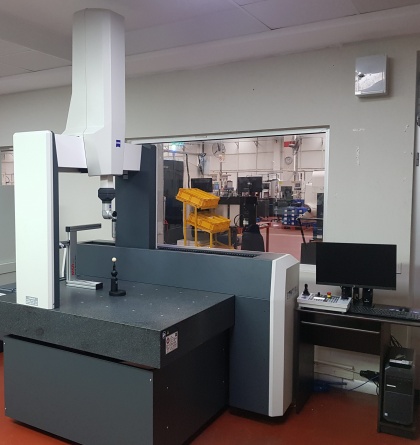

3D Coordinate Measuring Machine (CMM)

Zeiss Contura 7/10/6 RDS

Measurement of geometric dimensions, form measurements and curves of work pieces, internal and external - straight and helical gear wheels are measured with the integrated Gear Pro software.

The optical measuring machine for cylindrical parts
Measuring Range:
X = 300 mm Y = 140 mm

Optical Measuring Device Inline

Vicivision M314 Techno

Hardness Tester
HV0,1

HV0,2

Hardness Tester (Vickers)

Metkon Duroline LV

TC27

3D Measurement (Serial Production)
Measuring Range:
X = 300 mm Y = 300 mm Z = 150 mm
Precision: ±0.002 mm

3D Coordinate Measuring Device (Renishaw)

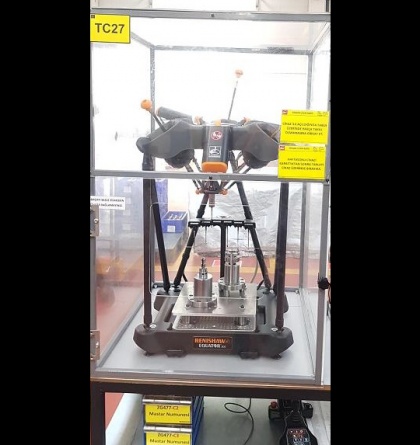

Renishaw Equator 300

3-dimensional coordinate, position, position measurements of the workpieces during serial production.

3D Coordinate Measuring Device (Renishaw)

3D Coordinate Measuring Integrated in Production Line

3D Coordinate Measuring Machine (CMM) Inline

Zeiss Duramax 5/5/5 HTG

TC16

Quality Control and 3D Modelling
Measuring Range:
135 mm x 130 mm

3D Scanner

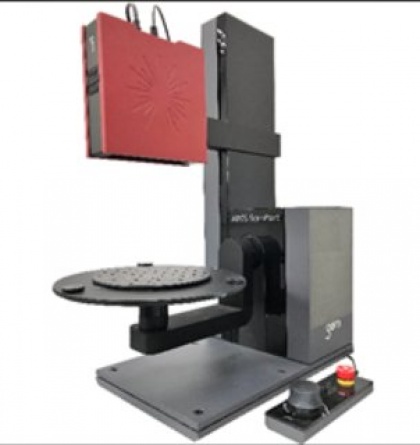

Gom Atos Core 5M

Precise 3D modeling of workpieces, quality control of molds, reverse engineering design and scanning processes

TC05

Surface Profile Check
Measuring Range:
X = 120 mm | Z = 50 mm
Precision: 3,16 μm

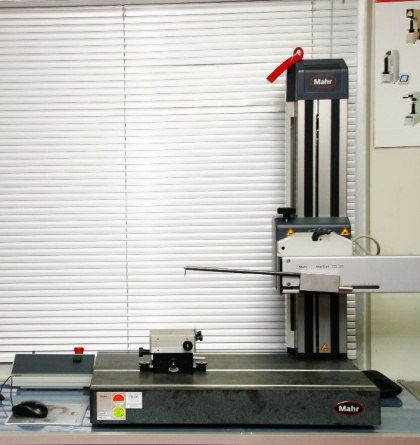

Contour Measuring Device

Mahr XC2

2D surface profile control of the machined workpieces

TC02

Disa Automotive Special Design and Production
Max. Force 20 kN

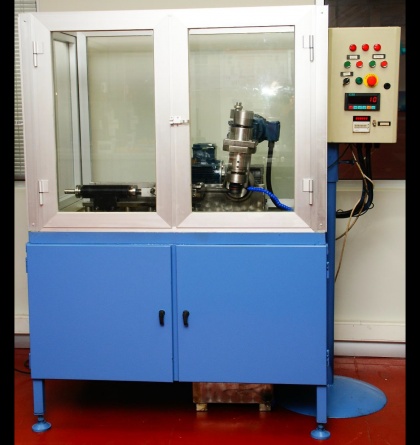

Fatigue (Key Life) Test Device

Wear and Leakage Test

Dynamic fatigue test of suspension and steering parts under 100.000 cycles and leakage test with inspection of joints under ultraviolet light.

TC23

Gear Measurements
Measuring Range: X: ± 75 mm
Module: Min. 0,35 | Max. 12
Precision: <0,5 μm

Gear Measuring Device

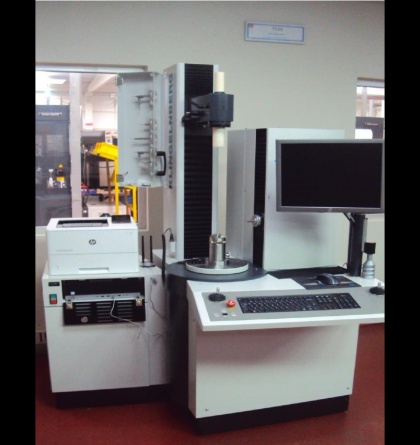

Klingelnberg P26

Measurement of gear profile, lead, pitch / reference diameter, teeth thickness, teeth root and tip diameters, gearing quality

TC07

Surface Hardness Tests
HRA – HRB – HRC

Hardness Tester

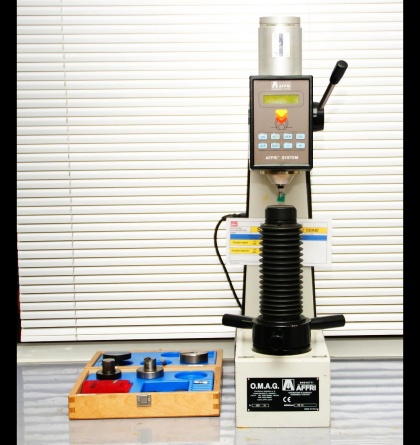

Omag Affri 206 EX

Surface hardness tests of workpieces

TC04

Tensile

CompressiveTest
Static Test Load Max. 50 kN

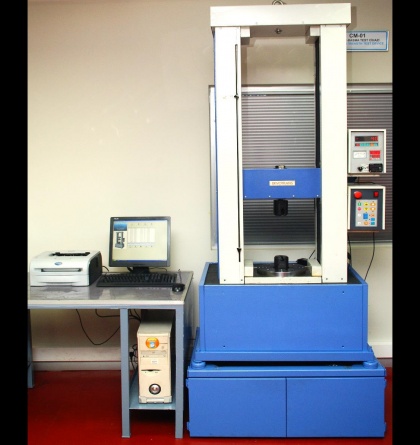

Material Test Machine | Static

Devotrans FU 5000-YBS

Suspension and steering parts' ball pin pull out push out welding tensile strength tests

TC24

2D Measurements
Measuring Range:
X = 150 mm | Y = 50 mm
Precision: ±(4+L/25)μm

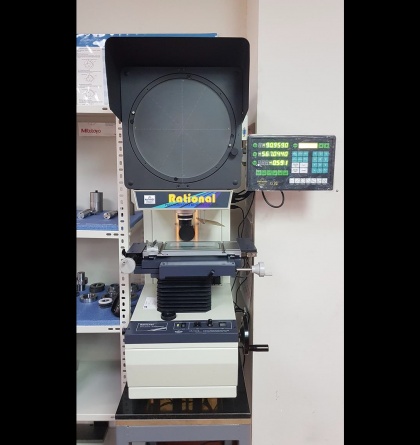

Profile Projection Device

Rational CPJ-3015

TC22

Roundness and Runout Control
Measuring Range:
Max Ø560 mm
Precision: 0,02+0,0006H μmv

Roundness Tester

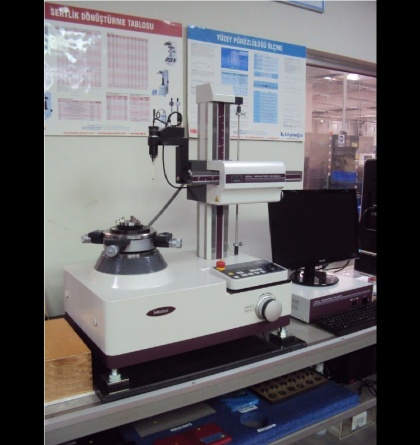

Mitutoyo RA-1600

Roundness, cylindricity and runout control

TC09

Besmak 10 kN
Measuring Range:
Dynamic Test Load Max. 10 kN

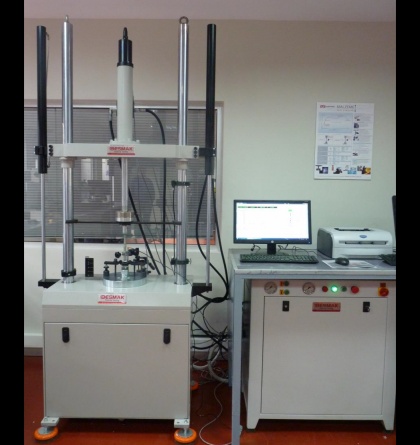

Servo Hydraulic Material Test Machine

Axial and Radial Spring Travel Measurement

Measurement of axial and radial spring travel values of suspension and steering parts with extensometer.

TC17

Metal Material Analysis
Measuring Type:
Fe – Al

Spectrometer

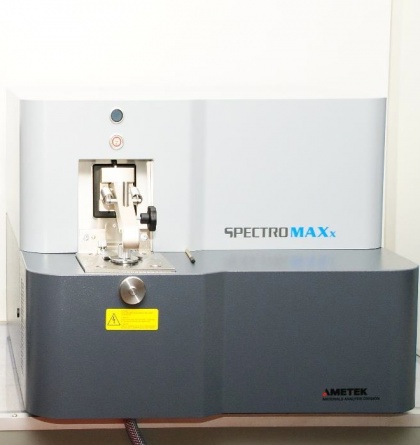

SPECTROMAXx

Chemical analysis of metal components

TC15

Surface Roughness
Measuring Range:
X = 25 mm

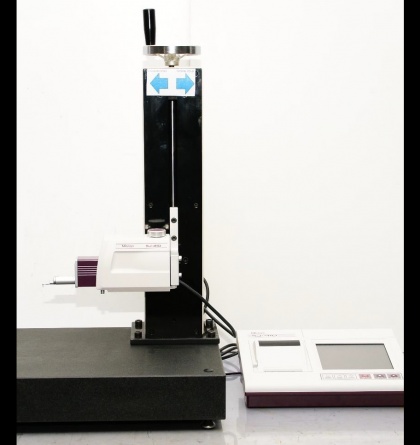

Surface Roughness Tester

Mitutoyo SJ410

TC25

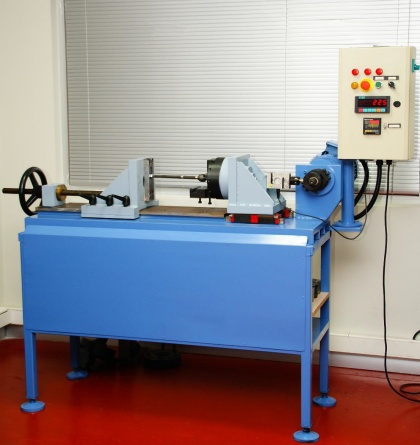

Oscillating and Rotating Torque Tests
Torque Range:
±50 Nm

Torque Measuring Device

Robmak Burster 8661

Measurement of initial break-away and oscillation torques of suspension and steering parts.

TC03

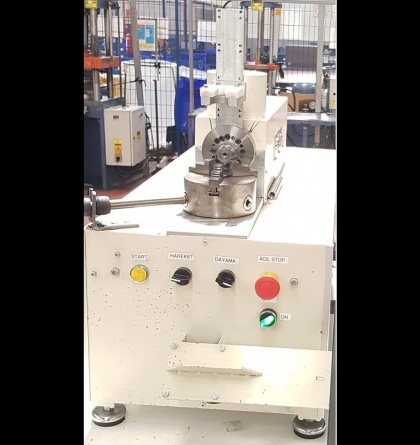

Disa Automotive Special Design and Production
Max. Force 20 kN

Vibration Test Device

Vibration Test

Vibration test of suspension and steering parts under 100.000 cycles.

Functional Tests

Fatigue (Key Life) and Leakage
Vibration
Axial and Radial Spring Travel
Initial Breakaway and Rotating Torque
Welding Tensile Strength
Ball Pin Breakaway
Ball Pin Pull Out and Push Out
Material Spectrometer
Material Microstructure Analysis (outsourced)
Salt Spray (outsourced)
Technical Part Cleanliness Test (outsourced)

Metrology Tests

Contour Measurement
Roundness-Cylindricity-Concentricity Measurement
3D Coordinate Measuring (CMM)
Precise Gear Inspection
Surface Rougness Test
3D Scanning and Modelling
Material Surface Crack
Surface Hardness Test
Surface Coating Thickness Control
Calipers, Micrometers, Height Gauge, Gages, Fixtures, Masters
Pneumatic Gauges
